Product Description

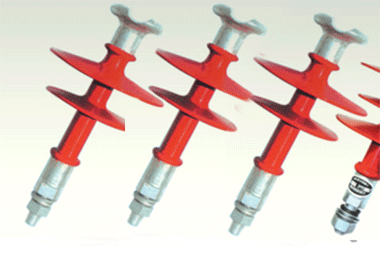

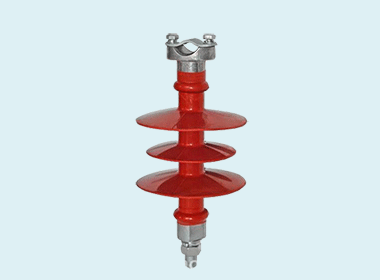

 The pin composite insulator has a high resistance

 to bending, shock resistance and anti-explosion

 performance.The inner insulation is reliable and the

 weight is light. It is the ideal generation product of

 traditional toughened glass insulation.

 Product Properties

 voltage:10-35kV

 Mechanical load: 2-12.5

 Creepage distance: 180-1260mm

 diameter of screw: 16-22mm

 Standard: IEC61109 IEC61952

 Production Process

 Warming up under high temperature

 Assembly of end fittings with reinforced fiber glass rod

 Brush coupling agent on the rod

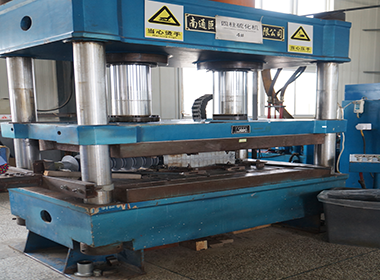

 Compression molding or injection molding of vulcanization

 Crimping of fittings to the rod

 Surface trimming

 Application

 High voltage power line

 Use in industry-specific solutions

 Device and plant construction,

 e.g. switchgear, for busbars and disconnect switches

 Platform support for capacitor banks
